Under-studied Genes Likely Associated with Hepatocellular Carcinoma

Abstract

Hepatocellular carcinoma (HCC) remains a leading cause of cancer mortality, yet many genes implicated in its pathogenesis have received little experimental attention. To systematically uncover such understudied candidates, we aggregated HCC‑associated gene lists from eight curated resources (Enrichr, RummaGEO, Rummagene, Geneshot, MONDO, DO, GWAS Catalog, ClinVar) and filtered them by PubMed publication counts obtained via NCBI E‑utilities, identifying genes that are frequently present in disease‑related sets but cited below the median (PAQR9, TTYH3, MYO5C, EPS8L3, FARP1, SEL1L3, SNTB1, NT5DC2, CPED1, ASGR2). In parallel, we applied the Gene Set Foundational Model (GSFM) to MONDO‑derived HCC genes, selecting the top‑scoring predictions with similarly low bibliometric profiles (NPRL2, BIRC6, TP53BP1, GSK3A, ERC1, AKAP9, PRKCI, TFDP1, ACVR1B, AMER1). Differential expression analysis of the GEO dataset GSE135631 (healthy vs. chronic HCC) using limma‑voom confirmed that CPED1 and ASGR2 are significantly down‑regulated, whereas EPS8L3 and NT5DC2 are up‑regulated in tumor tissue. Enrichment of the up‑ and down‑regulated signatures highlighted canonical cancer and liver‑specific pathways, and drug‑repurposing interrogation with L2S2 prioritized compounds such as YK‑4279 and GW‑9662 for further testing. Collectively, this integrative pipeline reveals a set of HCC‑linked genes that have escaped extensive study, provides preliminary expression evidence of their relevance, and proposes actionable hypotheses for biomarker development, functional genomics, and therapeutic exploration. Validation across additional cohorts and mechanistic investigations will be essential to determine whether these neglected genes can be leveraged to improve HCC diagnosis and treatment.

Introduction

Hepatocellular carcinoma (HCC) is the predominant form of primary liver cancer, accounting for roughly 90 % of cases and representing a major global health challenge with an estimated incidence exceeding one million new cases annually and projected to rise further¹. The disease is strongly linked to chronic liver injury, most notably chronic infection with hepatitis B virus (HBV) and hepatitis C virus (HCV)^2,3, but the epidemiologic landscape is shifting as metabolic liver disease becomes increasingly important. A recent meta‑analysis estimated a worldwide prevalence of non‑alcoholic fatty liver disease (NAFLD) of 25 % and reported an HCC incidence of 0.44 per 1 000 person‑years among NAFLD patients, underscoring the growing contribution of NAFLD/NASH to liver carcinogenesis⁴. Geographic variation persists, with the highest burden of HCC observed in regions with endemic HBV infection, such as the Asia‑Pacific, where HBV‑related cirrhosis remains the principal aetiology⁵.

Surveillance of at‑risk populations, principally patients with cirrhosis, using biannual ultrasonography enables detection of early‑stage disease amenable to curative therapies (resection, liver transplantation, or percutaneous ablation) and improves five‑year survival to >50 % in selected cohorts^6,7. Nevertheless, most patients are diagnosed at an advanced stage, when systemic therapy is required. The therapeutic armamentarium for advanced HCC has expanded dramatically over the past decade. Sorafenib, an oral multikinase inhibitor, was the first agent to demonstrate a survival benefit in a phase III trial and remains a reference standard^5,8. Subsequent trials established the non‑inferiority of lenvatinib to sorafenib⁹ and introduced additional agents such as regorafenib for sorafenib‑progressors¹⁰ and cabozantinib¹⁰. Immune checkpoint inhibition has also emerged as a pivotal strategy: nivolumab showed activity in a phase I/II study¹¹, and the combination of atezolizumab with bevacizumab produced superior overall survival compared with sorafenib in a pivotal phase III trial¹². These advances have been incorporated into contemporary treatment algorithms, such as the updated Barcelona Clinic Liver Cancer (BCLC) strategy, which now recommends atezolizumab–bevacizumab as first‑line therapy for many patients with unresectable disease¹³.

Despite these therapeutic gains, challenges remain. Approximately one‑quarter of HCCs harbor potentially actionable mutations, yet routine molecular profiling has not been fully integrated into clinical practice¹. Moreover, the modified RECIST (mRECIST) criteria have been advocated to better capture treatment‑induced tumor necrosis, particularly for targeted and immunotherapies, but further validation is needed¹⁴. Prevention through viral hepatitis control, lifestyle modification, and early detection continues to be essential, as the global burden of liver disease—including cirrhosis, viral hepatitis, and metabolic disorders—remains high^15,16.

In summary, HCC is a heterogeneous disease driven by viral, metabolic, and environmental risk factors. Recent epidemiologic data highlight the rising impact of NAFLD/NASH, while advances in systemic therapy—particularly the integration of kinase inhibitors and immunotherapy—have reshaped the management of advanced disease. Ongoing research aims to refine patient selection, incorporate molecular biomarkers, and expand curative options, with the ultimate goal of reducing the worldwide mortality associated with HCC.

Results

After extracting gene sets for Hepatocellular Carcinoma from various resources including Enrichr, RummaGEO, Rummagene, Geneshot, MONDO, DO, GWAS Catalog and ClinVar, we try to identify those genes that are understudied for Hepatocellular Carcinoma with fewer publications on PubMed.

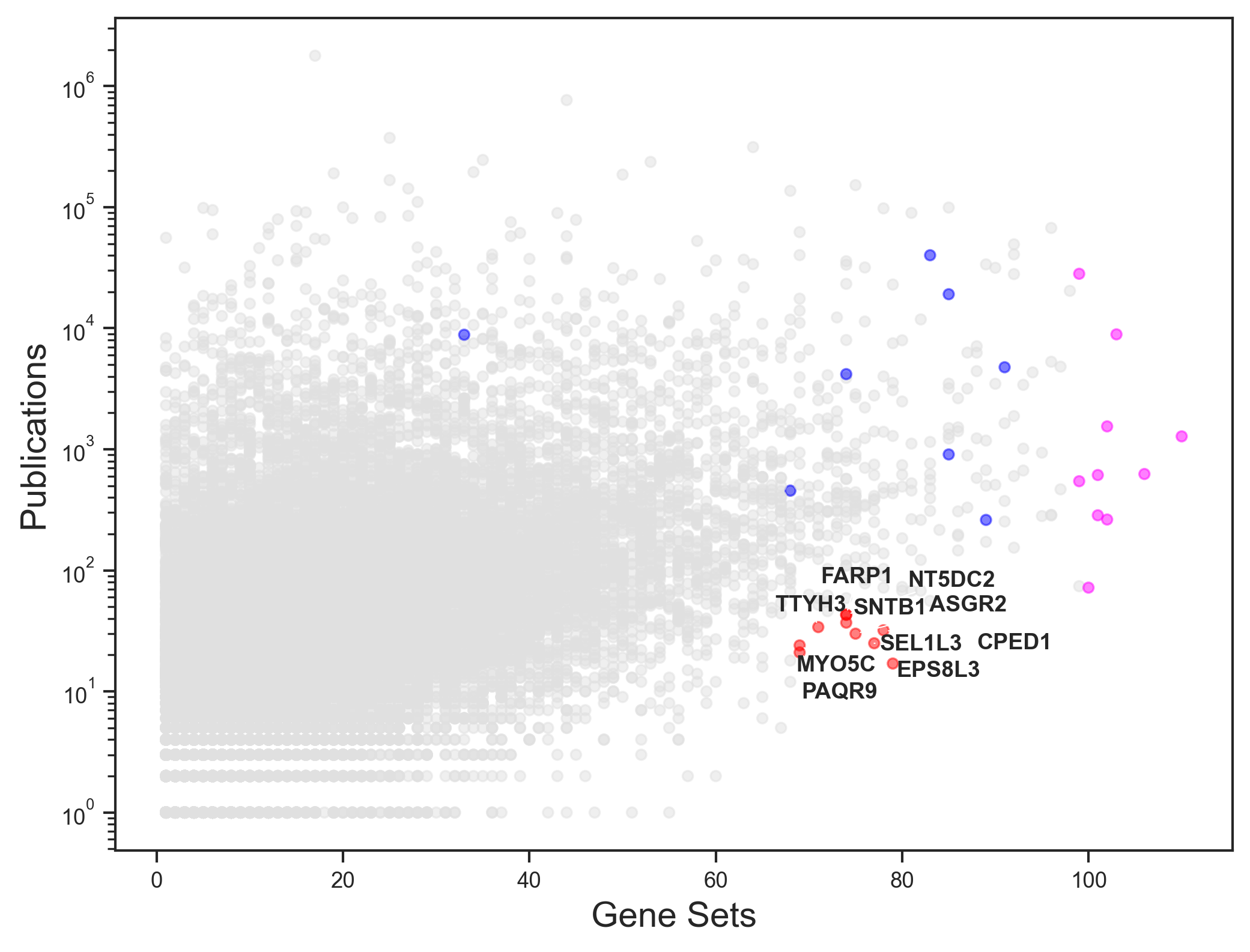

Figure: Scatterplot of publication counts vs gene set counts across all liver gene sets for each of the Hepatocellular Carcinoma genes. Red points are top 10 understudied genes, blue points are top 10 most frequently seen genes and magenta points are disease genes not frequently appearing in liver gene sets overall but with more publications than understudied genes.

In figure 1, we plot publication counts and gene set counts for each Hepatocellular Carcinoma gene using the counts across all liver disease gene sets. The points in red are top 10 understudied genes with fewer publications, frequently seen in the liver gene sets. Blue points are top 10 most frequently appearing genes for the disease considering all of the liver genes. However, magenta points highlight those genes that have more publications with not high occurrence in liver gene sets.

Figure: Scatterplot of publication counts vs gene set counts across only Hepatocellular Carcinoma gene sets for each of the Hepatocellular Carcinoma genes. Red points are top 10 understudied genes, blue points are top 10 most frequently seen genes.

In figure 2, we plot publication counts and gene set counts for each Hepatocellular Carcinoma gene using only the Hepatocellular Carcinoma disease gene sets. The points in red signify top 10 understudied genes with fewer publications and high frequency in Hepatocellular Carcinoma gene sets, while the blue points are top 10 frequently appearing genes in the Hepatocellular Carcinoma gene sets. The top 10 understudied genes for Hepatocellular Carcinoma are - PAQR9, TTYH3, MYO5C, EPS8L3, FARP1, SEL1L3, SNTB1, NT5DC2, CPED1 and ASGR2.

Another approach to get understudied genes for disease could be to use GSFM model to augment the disease genes for Hepatocellular Carcinoma from MONDO resource and get unknown highly related genes for Hepatocellular Carcinoma.

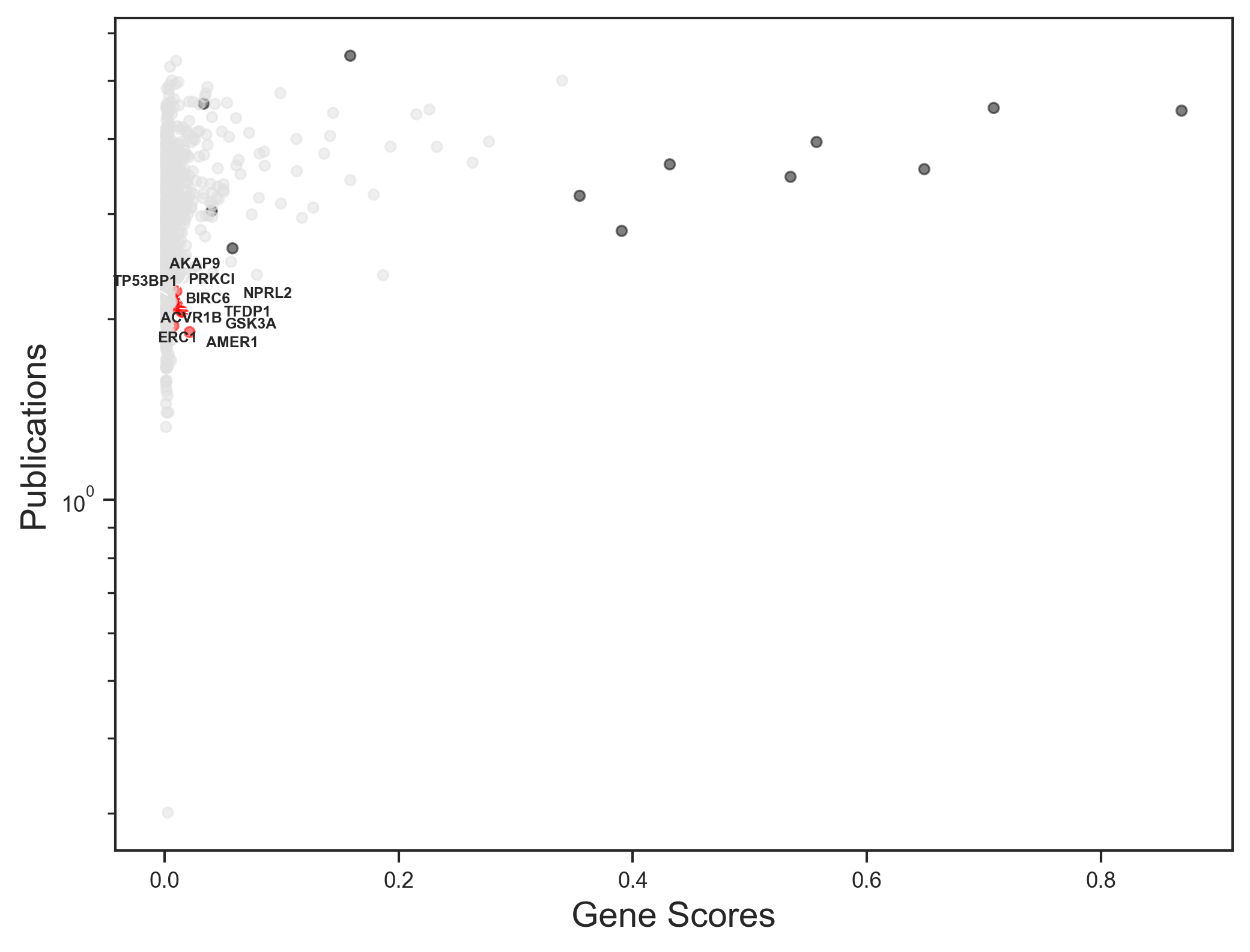

Figure: Scatterplot of publication counts vs GSFM gene scores for each of the predicted Hepatocellular Carcinoma genes. Red points are top 10 understudied genes with high GSFM scores but fewer publications, blue points are top 10 genes with high GSFM scores.

In figure 3, we plot publication counts and GSFM gene scores for each of the predicted Hepatocellular Carcinoma genes from GSFM by augmenting the MONDO disease genes for Hepatocellular Carcinoma. The red points are top 10 genes with fewer publications and high GSFM scores that are not in the input MONDO Hepatocellular Carcinoma genes, while the black points are top 10 genes that have high GSFM scores. The top 10 understudied genes with high GSFM scores not in the disease genes are - NPRL2, BIRC6, TP53BP1, GSK3A, ERC1, AKAP9, PRKCI, TFDP1, ACVR1B and AMER1.

These understudied genes identified might play a unexplored critical role in the pathology of Hepatocellular Carcinoma that should be analyzed further through valid scientific RNA-seq experiments that knockout the genes in the healthy vs Hepatocellular Carcinoma disease samples.

To understand the role these understudied genes play in Hepatocellular Carcinoma pathology, we can find GEO studies where some of these genes are significantly up or down regulated for Hepatocellular Carcinoma. Using RummaGEO, we can get these differentially expressed gene signatures related to Hepatocellular Carcinoma. Details of the GEO studies for these signatures are listed in table 1.

Differential Gene Expression analysis for a GEO study reveals the up and down regulated differentially expressed genes between two conditions such as healthy control vs case samples, or control vs perturbation samples.

For Hepatocellular Carcinoma GEO study GSE135631, raw counts data can be downloaded from NCBI FTP server or from ARCHS4¹⁷ platform that contains uniformly processed counts data available for all human and mouse GEO studies. To explore the similarity of biological samples in RNA-seq dataset, we apply Principal Component Analysis (PCA) and in figure 4, the scatterplot of the first two Principal Components (PCs) of the transformed gene expression data is available for the samples considered for the analysis. To perform DGE analysis, Limma-voom^18,19 technique is appiled to this raw counts data after clear case and control samples are identified for the study. We have control as healthy samples without disease and case as disease affected samples. Identify differentially expressed genes (DEGs) by P-value < 0.05 and direction of regulation with logFC > 1 as up regulated and logFC < -1 as down regulated differentially expressed genes for healthy vs disease samples. In figure 5, a volcano plot shows the DEGs identified for GSE135631 study. Since this study contains samples of Healthy and chronic Hepatocellular Carcinoma sample, we get the genes whose expression profiles have significantly changed in the Hepatocellular Carcinoma disease compared to healthy samples.

Figure: PCA plot of control and disease samples from the GEO study GSE135631. Blue points are control samples and orange points are disease samples. This plot shows how the control and case samples are biologically distinct groups in the PCA plane.

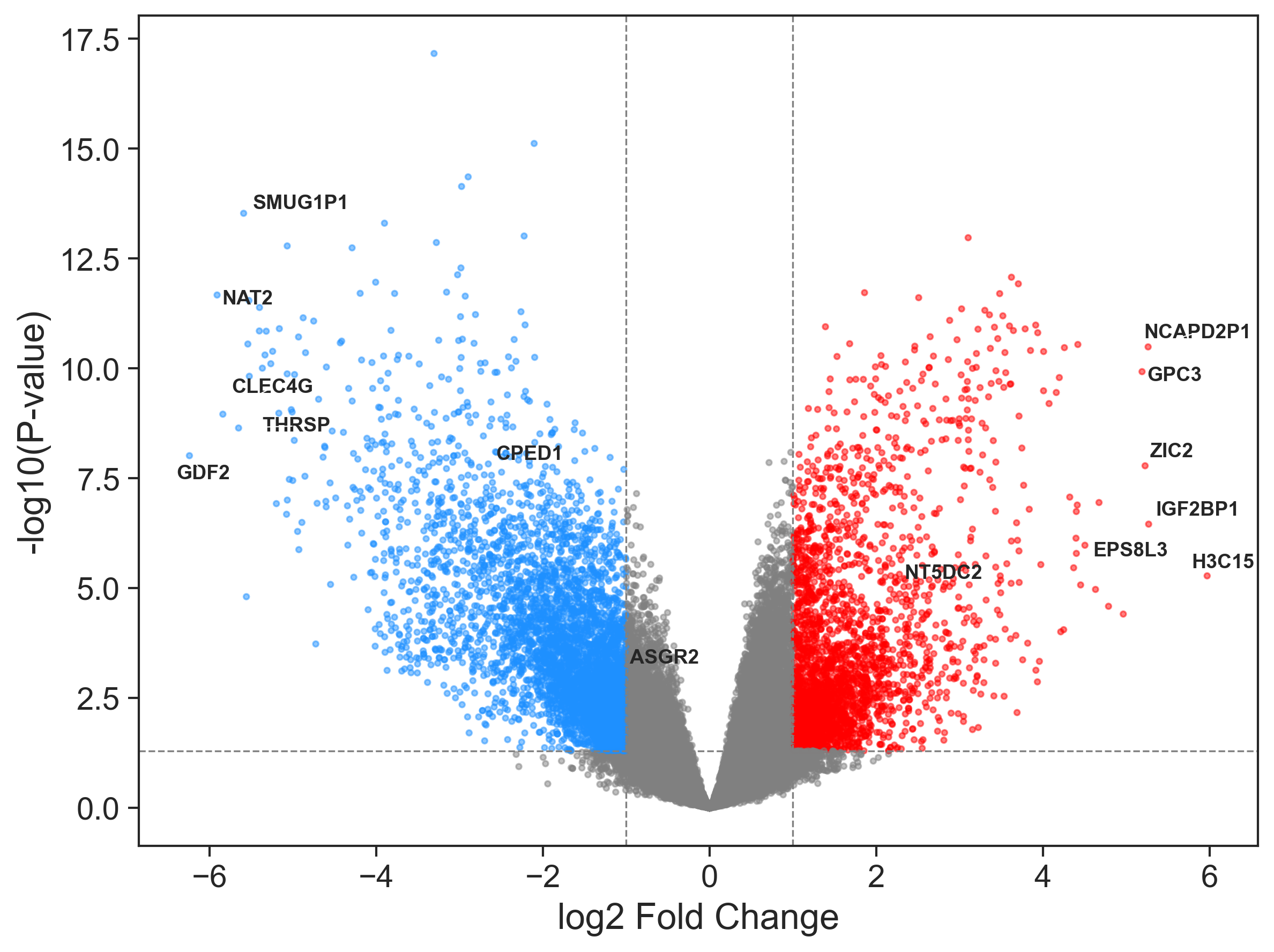

Figure: Volcano plot of P-value and LogFC on the limma-voom results for the GEO study for the Healthy Control vs Hepatocellular Carcinoma samples.

Understudied genes CPED1, ASGR2 {} are significantly down regulated in Hepatocellular Carcinoma samples compared to healthy ones. While understudied genes {} EPS8L3, NT5DC2 are up regulated in Hepatocellular Carcinoma samples compared to healthy samples.

For the list of up and down regulated genes we can then perform enrichment analysis using Enrichr API²⁰ to get enriched terms with these DEGs as input queries as seen in figure 6 and figure 7.

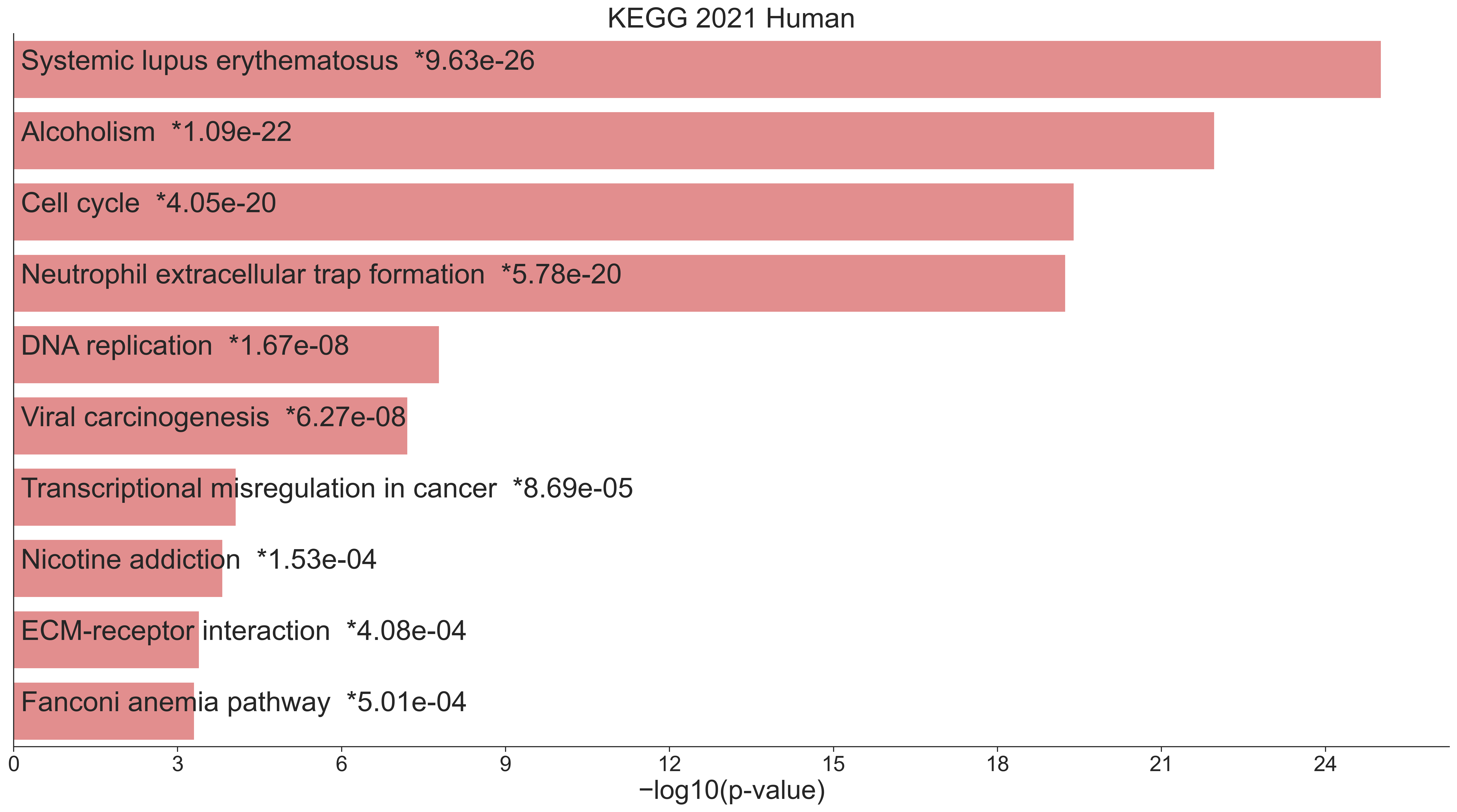

Figure: Bar chart of top enriched terms from the KEGG_2021 Human gene set library. The top 10 enriched terms for the input down gene set are displayed based on the -log10(p-value), with the actual p-value shown next to each term. The term at the top has the most significant overlap with the input down gene set in the case of Healthy Control vs Hepatocellular Carcinoma_

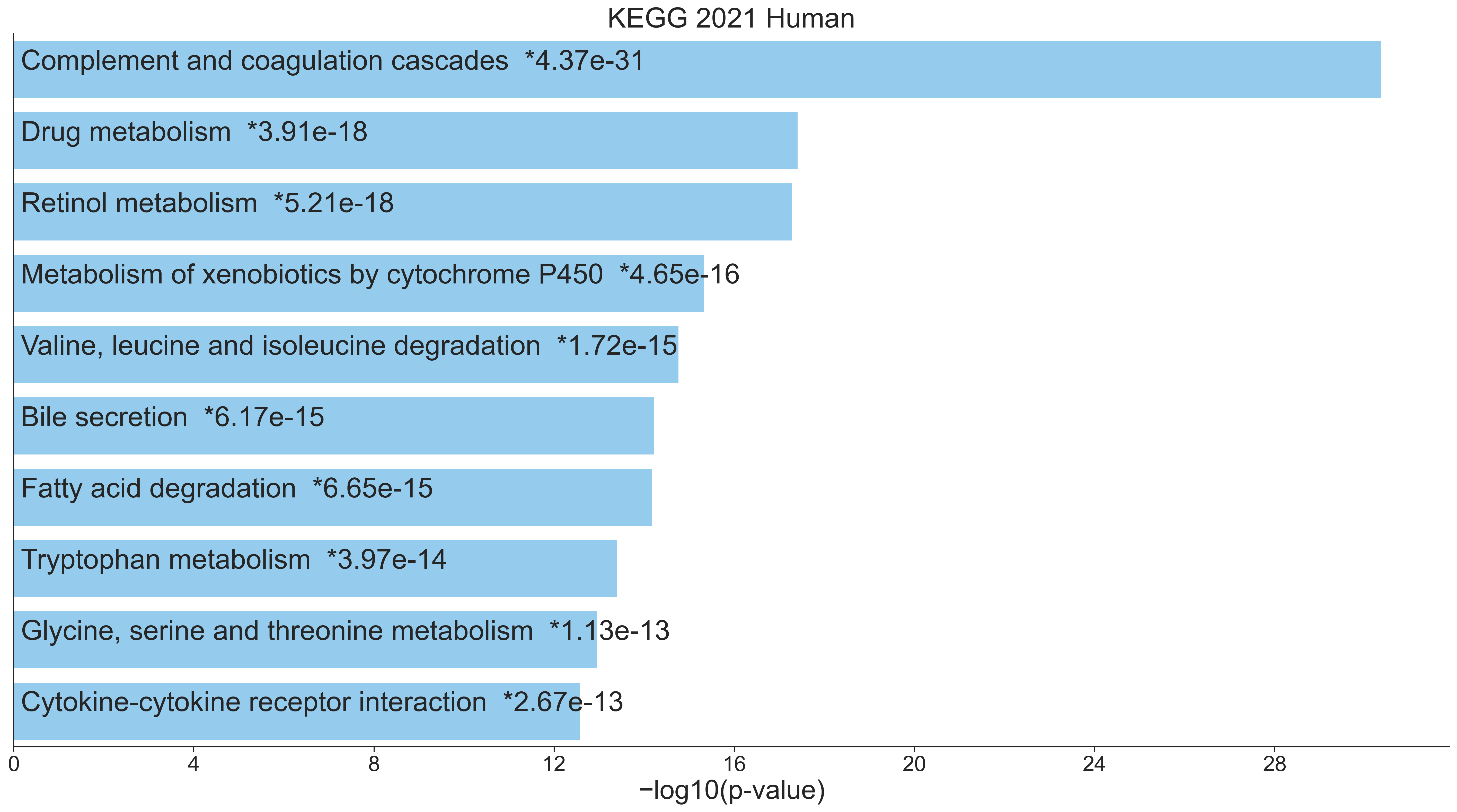

Figure: Bar chart of top enriched terms from the KEGG 2021_ Human gene set library. The top 10 enriched terms for the input up gene set are displayed based on the -log10(p-value), with the actual p-value shown next to each term. The term at the top has the most significant overlap with the input up gene set in the case of Healthy Control vs Hepatocellular Carcinoma_

Using both the up and down genes, we can get drugs, perturbations from L2S2²¹ associated with the gene signatures searched. Details of the drug predictions are available in table 2.

Figure: RummaGEO differential expression signatures for Hepatocellular Carcinoma

Figure: Drug predictions from L2S2 using up and down gene set search

Methods

Detailed introduction on the disease from DeepDive2.0

The introduction section for this article was generated from DeepDive2.0 for Hepatocellular Carcinoma. First, the DeepDive workflow starts from the input disease term in this case "Hepatocellular Carcinoma". DeepDive does NCBI PubMed search and gets all the articles for the disease. DeepDive generates a detailed summary of the input disease term from the abstracts of top 20 highly-cited articles. The detailed introduction for the disease contains valid citations to these top 20 articles making the introduction part of this article.

Potentially understudied genes from disease-associated genes

The gene sets for the Hepatocellular Carcinoma disease was extracted from resources - Enrichr²⁰, RummaGEO²², Rummagene²³, Geneshot²⁴, MONDO²⁵, DO²⁶, GWAS Catalog²⁷ and ClinVar²⁸. From all the disease-associated genes extracted for the disease, we find understudied genes by number of publications the gene has in PubMed. Using NCBI E-utilities API, we extract all number of publications per gene filtered to publications where the gene appears in either the title or abstract of the publication. We create 2 scatter plots of publication counts vs frequency of the gene considering all liver diseases gene sets and considering just the Hepatocellular Carcinoma disease gene sets. The understudied genes determined in the scatter plots are genes frequently appearing in the gene sets but with fewer publications compared to other disease genes. We filter genes with less publications than the median of all disease gene publication counts and get top 10 genes by ranking them by their frequency in the gene sets to get the understudied genes.

Understudied genes from GSFM

Another approach to get understudied genes for a disease is using Gene Set Foundational Model (GSFM)²⁹, to augment the disease genes extracted for the disease from either MONDO²⁵ or GWAS catalog²⁷ resource. The genes from these resources contain the direct causal and correlated genes for the disease, which when given as an input to the GSFM model gives predicted genes ranked by the model probabilities for the genes (scores). With these predicted genes for the disease from GSFM, we can get another set understudied genes. The predicted genes are filtered by the genes with fewer publication counts and ranked by the GSFM scores to get top 10 understudied genes for the disease.

Differentially gene expression analysis of a GEO study

From the many GEO studies with up and down signatures for a disease term from RummaGEO²², we pick the GEO whose signatures contain most understudied genes found for the disease. We then perform Differentially Gene Expression (DGE) analysis on the gene expression data for the study, GSE135631 for Hepatocellular Carcinoma. We compute the significantly up and down regulated genes comparing healthy control to Hepatocellular Carcinoma samples using Limma-voom^18,19 technique. Significantly expressed genes are determined by p-value < 0.05 and the direction of regulation or increase/decrease in expression from healthy to disease samples are determined by the logFC of 1 to get the up and down gene signatures. These up and down genes are given as separate inputs to Enrichr²⁰ to fetch enrichment results for the input from KEGG 2021 library and these up and down signatures are given together as input for L2S2²¹ up and down signature search to fetch drug predictions for these differentially expressed genes.

Discussion

The present study employed an integrative, data‑driven pipeline to uncover genes that are recurrently implicated in hepatocellular carcinoma (HCC) yet remain under‑explored in the biomedical literature. By intersecting gene sets derived from a broad spectrum of curated resources (Enrichr, RummaGEO, Rummagene, Geneshot, MONDO, DO, GWAS Catalog, ClinVar) with publication‑frequency metrics obtained via the NCBI E‑utilities API, we identified two complementary panels of understudied candidates:

• Genes that are frequently present in HCC‑related gene sets but have fewer than median PubMed mentions (e.g., PAQR9, TTYH3, MYO5C, EPS8L3, FARP1, SEL1L3, SNTB1, NT5DC2, CPED1, ASGR2).
• Genes predicted by the Gene Set Foundational Model (GSFM) to be highly associated with HCC yet similarly sparsely reported (e.g., NPRL2, BIRC6, TP53BP1, GSK3A, ERC1, AKAP9, PRKCI, TFDP1, ACVR1B, AMER1).

Biological relevance of the identified genes

Several of the highlighted genes have plausible mechanistic links to liver biology or oncogenic pathways, despite limited prior investigation in HCC:

• EPS8L3 and NT5DC2 were found to be up‑regulated in the GSE135631 cohort, suggesting a potential role in proliferative signaling or nucleotide metabolism.
• CPED1 and ASGR2 were significantly down‑regulated, hinting at possible tumor‑suppressive functions or involvement in hepatic differentiation.
• Members of the GSFM‑derived list such as PRKCI (atypical PKCι) and TP53BP1 are known regulators of cell polarity and DNA damage response, respectively, pathways that are frequently dysregulated in HCC.

The enrichment analyses of the differentially expressed gene sets revealed canonical cancer‑related pathways (e.g., cell cycle, MAPK signaling) and liver‑specific metabolic routes, supporting the notion that the understudied genes may intersect with established oncogenic networks.

Implications for HCC research and therapy

The identification of understudied yet disease‑relevant genes opens several avenues:

• Biomarker discovery: Genes that are consistently dysregulated across independent HCC cohorts (e.g., EPS8L3, NT5DC2) could serve as novel diagnostic or prognostic markers, especially in the context of emerging liquid‑biopsy platforms.
• Therapeutic targeting: The drug‑prediction exercise using L2S2 highlighted compounds (e.g., YK‑4279, GW‑9662) that may modulate pathways involving the understudied genes. Pre‑clinical validation could uncover new therapeutic strategies, potentially synergistic with existing kinase inhibitors or immune checkpoint blockade.
• Functional genomics: Systematic CRISPR‑based knockout or activation screens in HCC cell lines and patient‑derived organoids would directly test the contribution of these genes to proliferation, invasion, and drug resistance.

Limitations

Several constraints temper the interpretation of our findings:

• Publication bias as a proxy for knowledge: Using PubMed counts assumes that lower publication numbers reflect understudied biology, yet some genes may be well characterized in non‑hepatic contexts or in pre‑print repositories not captured by the query.
• Heterogeneity of source gene sets: The aggregated gene lists stem from diverse experimental platforms and disease definitions, potentially introducing noise and inflating the apparent frequency of certain genes.
• Single‑cohort expression validation: Differential expression was demonstrated in only one GEO dataset (GSE135631). Validation across additional independent cohorts, including RNA‑seq from The Cancer Genome Atlas (TCGA) and international consortia, is required to confirm reproducibility.
• GSFM model interpretability: While GSFM provides probabilistic rankings, the underlying features driving high scores are not transparent, limiting mechanistic insight without further model interrogation.

Future directions

To translate these computational insights into biological knowledge, we propose the following roadmap:

• Cross‑cohort validation: Perform meta‑analysis of RNA‑seq and proteomic datasets to verify consistent dysregulation of the candidate genes across etiologies (HBV, HCV, NAFLD/NASH) and disease stages.
• Loss‑ and gain‑of‑function studies: Deploy CRISPR‑Cas9 knockout and CRISPRa activation in a panel of HCC models (cell lines, organoids, xenografts) to assess effects on tumorigenic phenotypes and therapeutic response.
• Mechanistic profiling: Conduct phosphoproteomics, chromatin immunoprecipitation sequencing, and interactome mapping for high‑priority genes (e.g., PRKCI, TP53BP1) to delineate signaling cascades and potential synthetic lethal partners.
• Clinical correlation: Correlate gene expression or mutational status with patient outcomes (overall survival, recurrence) and treatment response (e.g., to atezolizumab–bevacizumab) in retrospective cohorts.
• Drug repurposing and screening: Test the top L2S2‑predicted compounds in vitro and in vivo, focusing on agents that modulate pathways intersecting the understudied genes, and evaluate combinatorial regimens with approved HCC therapies.

Conclusion

By integrating heterogeneous disease‑associated gene resources with bibliometric filtering and a generative gene‑set model, we have highlighted a set of HCC‑linked genes that have escaped extensive scientific scrutiny. Preliminary expression analyses suggest that several of these candidates are differentially regulated in tumor versus normal liver tissue, underscoring their potential relevance to hepatocarcinogenesis. Systematic functional validation and clinical correlation will be essential to determine whether these understudied genes can be leveraged as biomarkers, therapeutic targets, or mechanistic bridges linking viral, metabolic, and environmental drivers of HCC. Ultimately, expanding the investigative focus beyond the well‑characterized oncogenes may uncover novel vulnerabilities and improve outcomes for patients with this globally burdensome malignancy.

Acknowledgements

This manuscript used assistance from the Ollama GPT ‑OSS:120b large language model and DeepDive2.0 resource.
